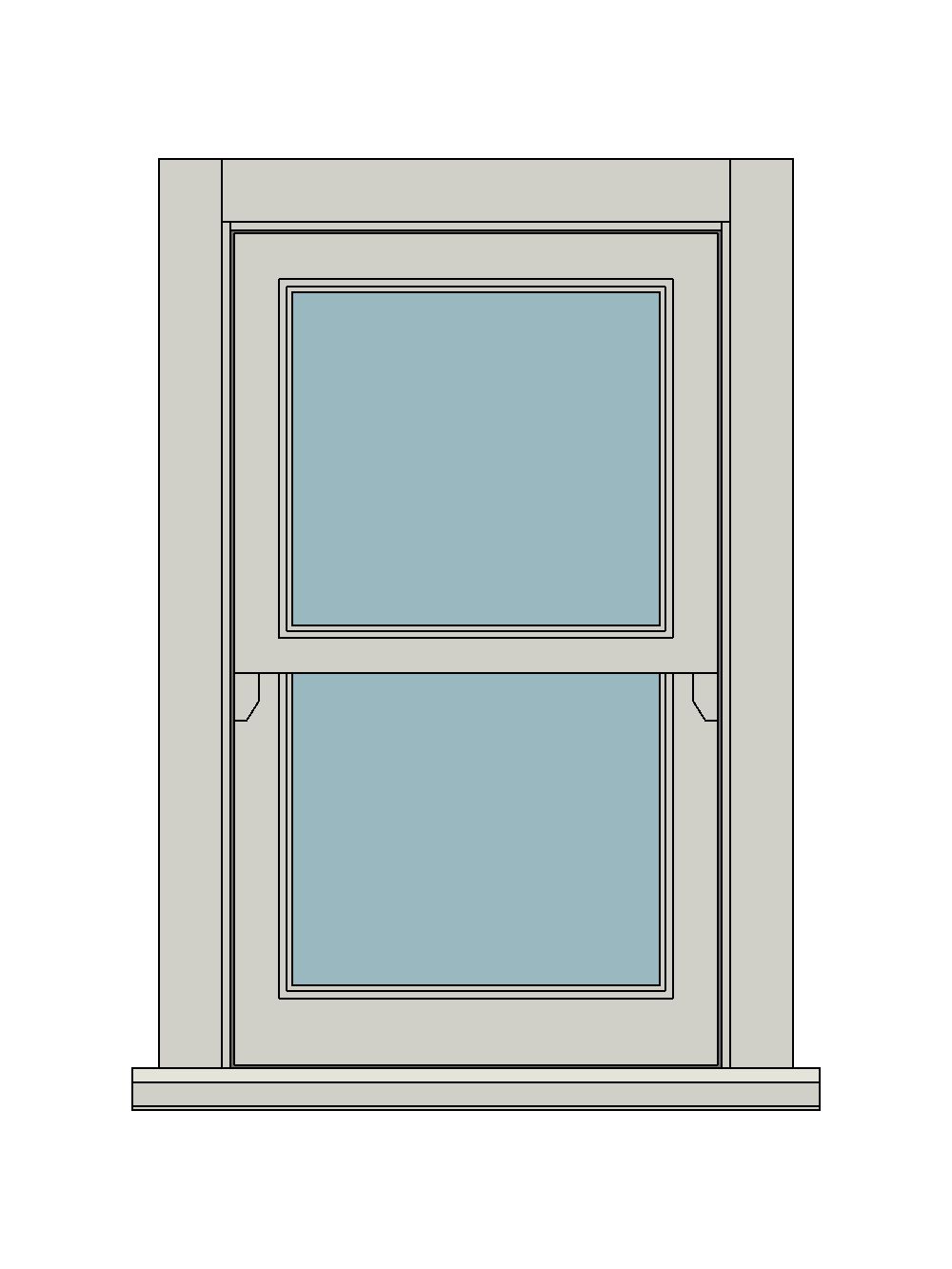

Timber sliding sash window — JELD-WEN-inspired Revit 2027 Window

Timber sliding sash window. Digital Revit 2027 window family; no physical product supplied.

£1.49 includes all 11 listed types.

Included features

• Single or double glazing; clear or obscure glass; bar patterns; hardware styles and finishes; adjustable size, cill and reveal.
• All 11 listed size/type presets.
• ZIP download containing the RFA, matching native TXT type catalogue and illustrated family details/loading guide.

Included types

Made-to-measure reference. Selected UK coordination presets, not manufacturer stock sizes.

Compatibility and limitations

• Independent GT3D architectural reference model inspired by the May 2019 JELD-WEN catalogue; not manufacturer-issued or endorsed.
• Native Revit 2027 only; cannot open in earlier Revit versions.
• Profiles, hardware and sizes are coordination geometry, not manufacturing specifications.

Loading

Extract the ZIP. Keep the matching RFA and TXT together. In Revit 2027 choose Insert → Load Family and select the required types.

Licence and repeat downloads

£1.49 buys one family and all its included types for use and modification in the purchaser’s own personal or commercial projects. The RFA cannot be resold, shared as a standalone file or added to another library. Repeat downloads are free while GT3D offers the service; refunded purchases lose download access.

Purchase through the GT3D Revit catalogue to generate your secure download reference.
