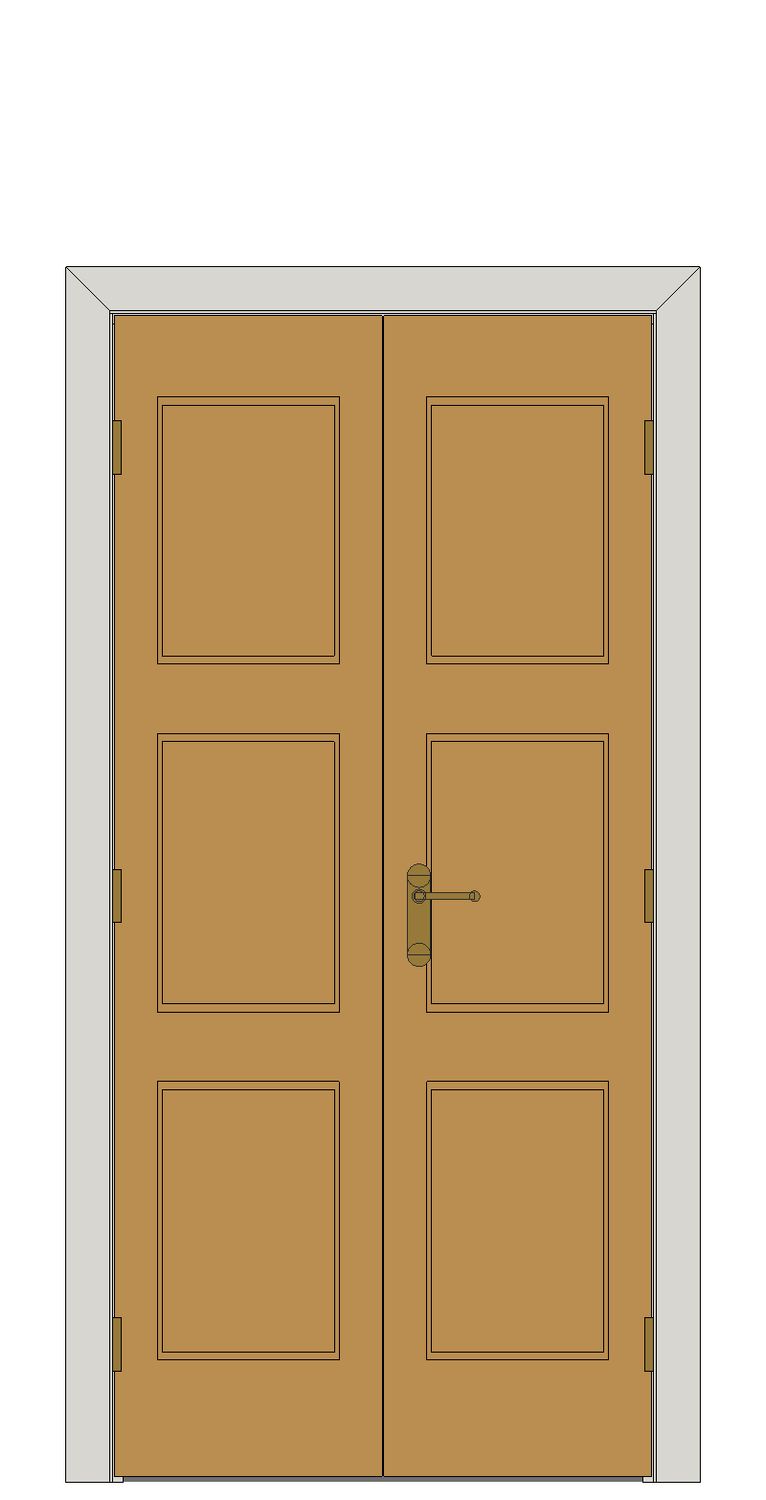

Double doorset — Trent Oak Internal Door – Unfinished — Double hinged — Unfinished Oak

A configurable double hinged doorset family for Revit 2027, with 7 named size types included.

Digital Revit 2027 RFA. All 7 named types included. No physical door supplied.

Included features

• 7 named size types included in one Revit 2027 RFA.
• Door finish: Unfinished Oak.
• Coordinated lining, stops and architraves with white-painted softwood or white oak frame material options.
• 32 mm lining and 75 × 18 mm architraves.
• 25 × 18 mm stops.
• Optional overpanel arrangement with 2400 mm overall frame height; see the included family guide for controls.
• Equal or unequal leaves; active handle with passive flush bolts, or matching handles on both leaves. Individual leaf widths are adjustable.
• Ironmongery: Original active handle set; optional matching passive handle-only set; passive top/bottom flush-bolt plates and meeting strike
• Saved and reopened in Revit 2027; included copyright notice verified.
• Adjustable timber beads on both faces and all four edges of the overpanel glass or plywood. Default 15 mm face width × 12 mm projection; adjust Overpanel_Bead_Width and Overpanel_Bead_Depth. Material follows Frame_Material; visibility follows Overpanel.

Included types

• Pair_2x686x1981x35_Unfinished_Oak
• Pair_2x762x1981x35_Unfinished_Oak
• Pair_2x533x1981x35_Unfinished_Oak
• Pair_2x457x1981x35_Unfinished_Oak
• Pair_2x838x1981x35_Unfinished_Oak
• Pair_2x813x2032x35_Unfinished_Oak
• Pair_2x610x1981x35_Unfinished_Oak

Compatibility and limitations

• Digital BIM family only; no physical door supplied.
• Created and tested in Revit 2027.
• Independent GT3D BIM content; reference manufacturer names do not imply endorsement.

Custom paired assembly from two source leaf designs. Named equal types retain source leaf sizes; unequal widths are adjustable design dimensions, not additional retailer stock sizes.

Reference manufacturer: JB Kind. Independent GT3D content; no endorsement implied.

Licence and repeat downloads

£1.49 buys one family and all its included types for use and modification in the purchaser’s own personal or commercial projects. The RFA cannot be resold, shared as a standalone file or added to another library. Repeat downloads are free while GT3D offers the service; refunded purchases lose download access.

Purchase through the GT3D Revit catalogue to create your secure download reference.
