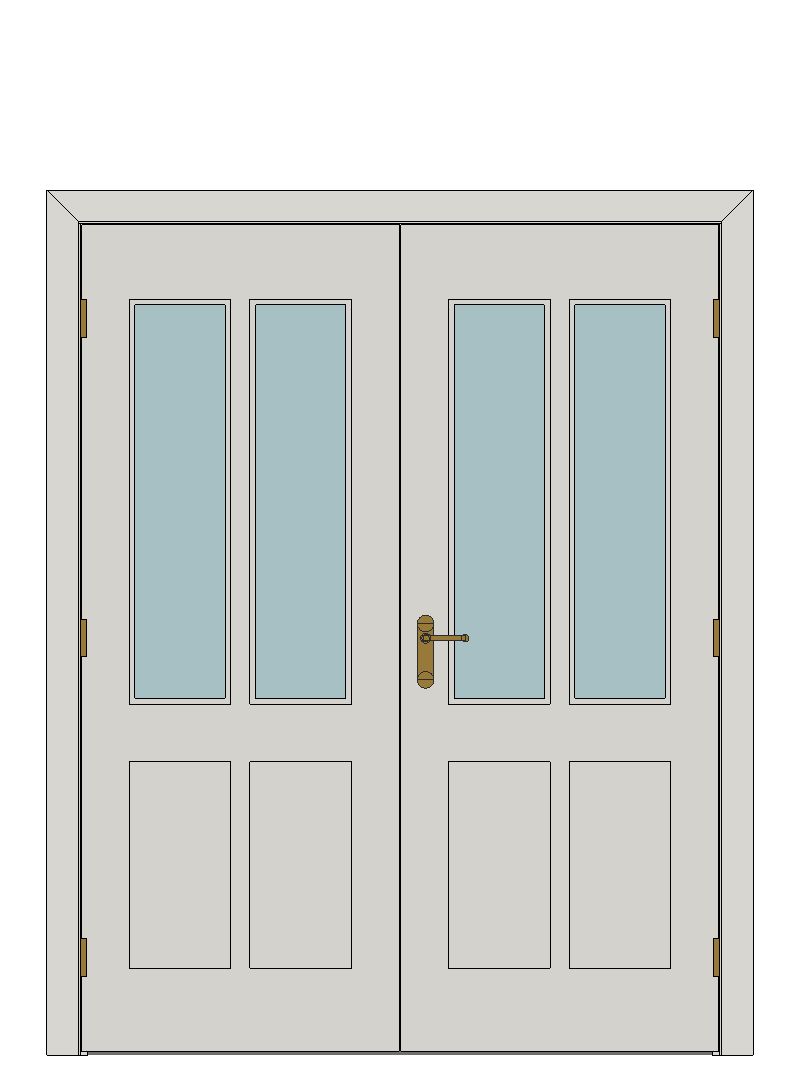

Double doorset - INSULUX Haddon inspired — JELD-WEN-inspired Revit 2027 Door

Double doorset - INSULUX Haddon inspired. Digital Revit 2027 door family; no physical product supplied.

£1.49 includes all 3 listed types.

Included features

• Independent leaf/frame materials; white oak frame option; ironmongery styles and finishes. Clear, obscure or plywood overpanel; adjustable 15 x 12 mm beads on both faces. Equal/unequal leaves, passive flush bolts and optional second handles.
• All 3 listed size/type presets.
• ZIP download containing the RFA, matching native TXT type catalogue and illustrated family details/loading guide.
• Equal or unequal leaves; adjustable passive leaf, optional passive handles and flush bolts. Saved Pair_2x names describe EACH leaf; overall paired width also includes the meeting gap.

Included types

Selected UK coordination leaf-size presets; not a complete stock/SKU list. Check availability of each design and size. Frame and overpanel dimensions are custom.

Compatibility and limitations

• Independent GT3D architectural reference model inspired by the May 2019 JELD-WEN catalogue; not manufacturer-issued or endorsed.
• Native Revit 2027 only; cannot open in earlier Revit versions.
• Profiles, hardware and sizes are coordination geometry, not manufacturing specifications.

Loading

Extract the ZIP. Keep the matching RFA and TXT together. In Revit 2027 choose Insert → Load Family and select the required types.

Licence and repeat downloads

£1.49 buys one family and all its included types for use and modification in the purchaser’s own personal or commercial projects. The RFA cannot be resold, shared as a standalone file or added to another library. Repeat downloads are free while GT3D offers the service; refunded purchases lose download access.

Purchase through the GT3D Revit catalogue to generate your secure download reference.
